Rumah ProdukPeralatan Penanggulangan TerorismeYQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring
YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring
YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring
Hubungi sekarang

YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection LCD Display and Audible Visual Alarm for Safety Monitoring

Tempat asal: Cina Nama merek: topsky

Informasi Detail
Ukuran Bor: 4/5/6/8mm Fungsionalitas: Multifungsi
Membawa Beban: <30kg Kata kunci: pakaian pelindung bahan kimia keselamatan
Kelembaban Relatif: 0 hingga 95% Aplikasi: Kontra terorisme
Pelat Ledakan Lapis Baja: 1800 m/s (selangkangan, dada dan leher) Cakupan Azimuth: 0°～360°
Jendela transparan: ≥750m/s Sudut: 120Degree
Bahan: Paduan dan komposit berkekuatan tinggi nama lain: Gaun isolasi medis tipe coverall
Baterai: 7 baterai alkaline kering 1,5AAA*2 Tingkat Perlindungan: NIJ IIIA untuk 9mm dan .44mag
bahan luar: Bulleteproof: Aramid ud
Menyoroti:

7 Parameters Detection Gas Detector

,

LCD Display Safety Monitoring Device

,

Audible and Visual Alarm Multi-parameter Detection Alarm Instrument

Deskripsi Produk

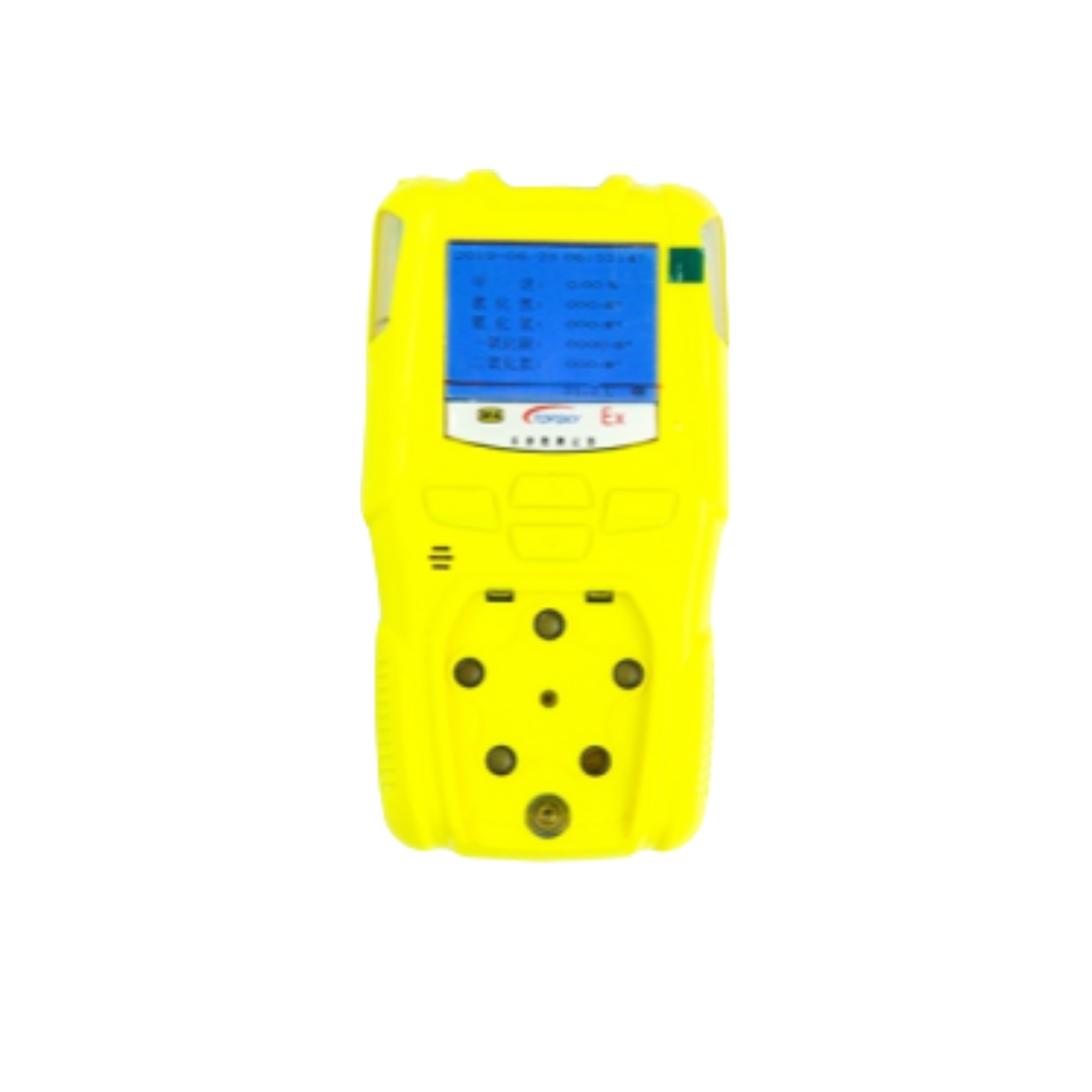

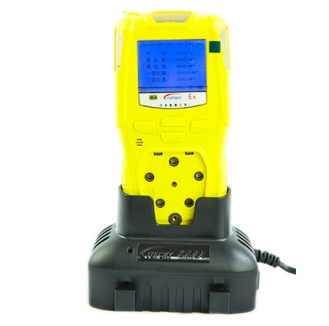

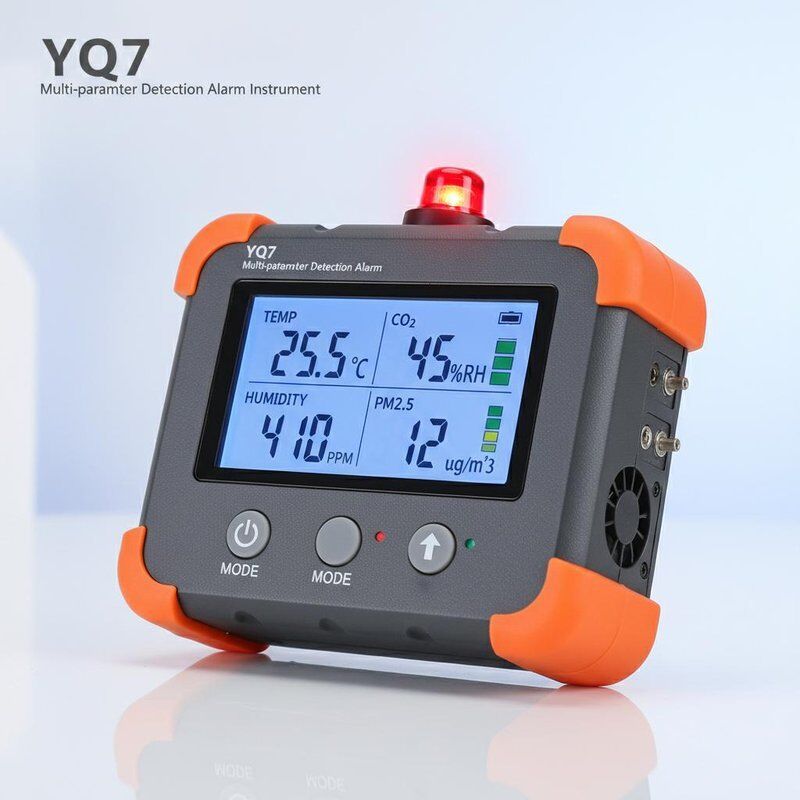

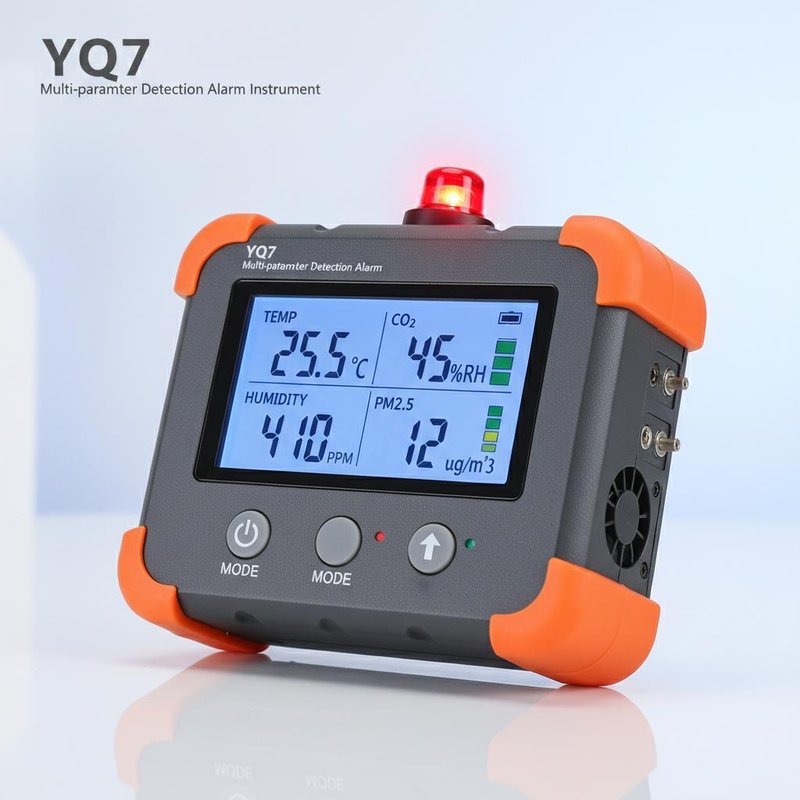

YQ7 Multi-parameter Detection Alarm Instrument
Product Overview

The YQ7 multi-parameter detection alarm instrument simultaneously and continuously detects 7 parameters including CH4, O2, CO, CO2, H2S, °C, and m/s, triggering audible and visual alarms when parameters exceed preset limits. Utilizing an 8-bit microcontroller and high-precision detection components, this instrument delivers high sensitivity and rapid response. The 3-inch color LCD provides clear, reliable display for all operational personnel including technicians, operators, and management.

Key Features
  • Simultaneous detection of 7 parameters: CH4, O2, CO, CO2, H2S, ℃, and m/s
  • User-configurable alarm points
  • Secondary sound and light alarm function
  • Replaceable modular sensors
  • Comprehensive monitoring for mine gas and environmental parameters
  • One-click zero calibration with charging zero calibration capability
  • Infrared device for adjustable configuration
  • Data storage capacity: 10,000 measurement data sets
Technical Specifications
Parameter Measurement Range Resolution
Methane (CH4) 0 - 100% (VOL) 0.01%
Oxygen (O2) 0 - 30% (VOL) 0.1%
Carbon Monoxide (CO) 0 - 1000 ppm 1 ppm
Hydrogen Sulfide (H2S) 0 - 100 ppm 1 ppm
Temperature -20.0 - 60.0 ℃ 0.1 ℃
Wind Speed 0.4 - 30.0 m/s 0.1 m/s

Display: LCD shows real-time data and system status with vibration, sound and light alarm, fault and under-voltage indication

Audible Alarm: ≥75 dB(A) at 1 meter distance

Visual Alarm: Visible ≥20 meters in darkness

Power Supply: 1600 mAH lithium manganese oxide lithium-ion battery with protection board and overcurrent protection

Battery Specifications: Maximum open-circuit voltage: 4.3V, Maximum short-circuit current: 1.0A

Operating Time: 10 hours (non-alarm state)

Housing Material: ABS engineering plastic

Protection Rating: IP54

Weight: 1 kg

Dimensions: 160mm × 85mm × 43mm
