Rumah ProdukPeralatan Penanggulangan TerorismeExplosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement
Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement
Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement
Hubungi sekarang

Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement

Tempat asal: Chian Nama merek: TOPSKY

Informasi Detail
Ukuran Produk: 365(L)*110(W)*65mm (H) Fitur: Tanpa kontak
Ukuran Beacher: 73*16*50cm masa pakai baterai: 2 jam
Waktu pengukuran: ≤2 Detik Nilai tekanan keluaran: 63MPa
Berat Pompa: 10KG Sistem kerja: Sistem array bertahap (pemindaian fase azimuth)
Panjang gelombang: 447nm; 415nm Menggunakan Jarak: ≤2m
Diperlukan pelatihan: Pelatihan khusus untuk penggunaan yang efektif Kecepatan: 2s
Aliran tekanan tinggi: 0,5l/mnt Lengan: 567.7m/s
Waktu Respons Deteksi: ≤2s dengan kemampuan deteksi waktu nyata
Menyoroti:

Real-time detection infrared camera

,

Dual-light fusion thermal imager

,

High-sensitivity infrared handheld device

Deskripsi Produk

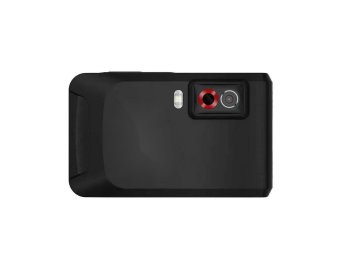

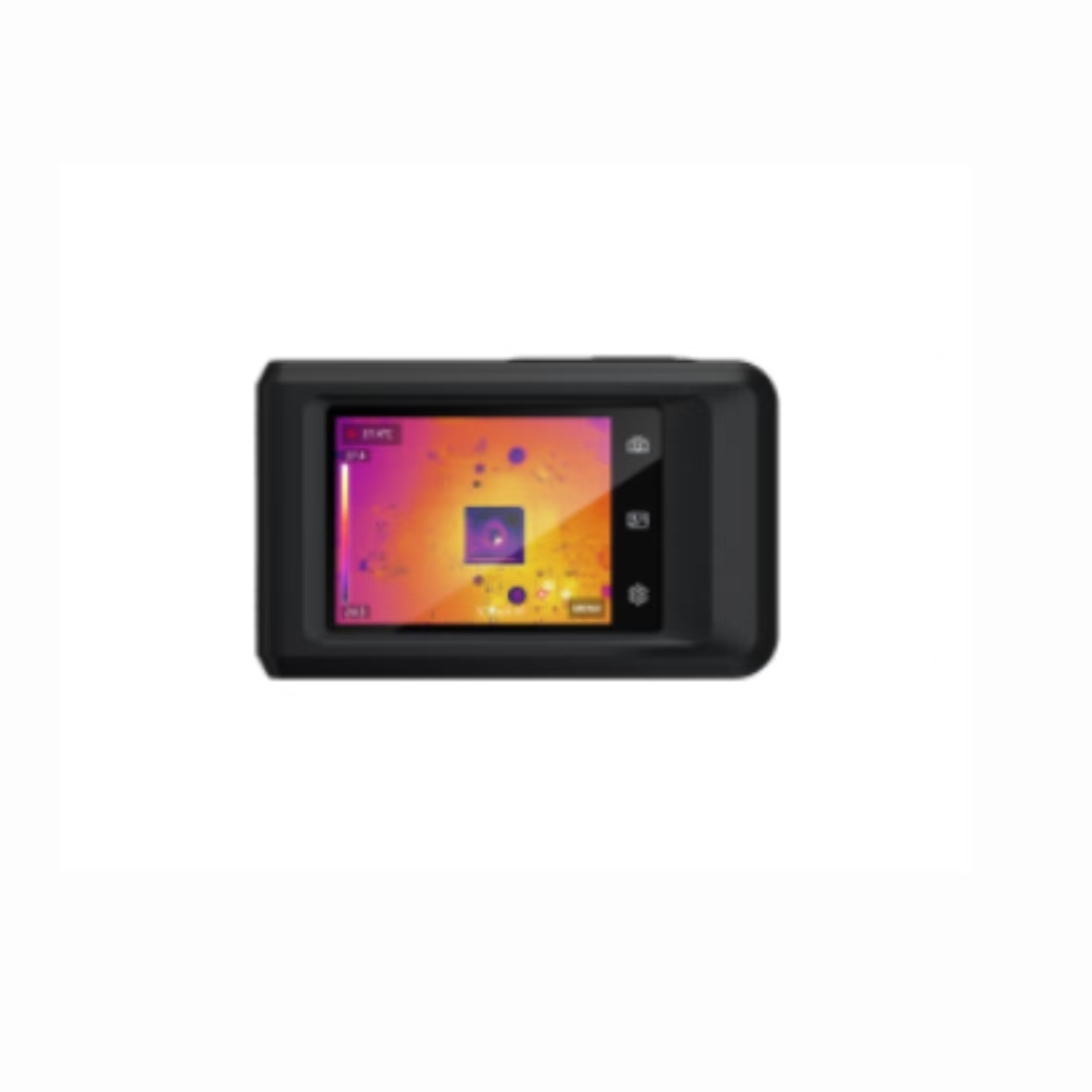

Explosion-Proof Infrared Camera
The explosion-proof infrared thermal imager is a cutting-edge handheld temperature measurement device that combines visible light imaging with infrared thermal imaging technology. Featuring advanced image processing capabilities including dual-light fusion, picture-in-picture display, and multiple pseudo-color modes, this device enables precise identification of image details and accurate temperature analysis.
Key Features
  • Continuous digital zoom from 1.0x to 4.0x
  • Video recording and capture capabilities
  • Real-time viewing and secondary analysis via mobile app and computer software
  • Wide temperature measurement range: -20°C to 550°C
  • Macro lens expansion support
  • Fusion display of thermal imaging and visible light images
  • Multiple pseudo-color display modes
  • Real-time scene temperature measurement
  • Video capture, screenshot, and media file storage
  • Wi-Fi and hotspot connectivity
Technical Specifications
Temperature Measurement Range -20°C to 550°C
Temperature Measurement Accuracy ±2°C or ±2% (whichever is greater)
Digital Zoom 1X - 4X, minimum change 0.1X
Thermal Imaging Resolution 256 × 192 pixels
Spectral Response Band 8 - 14μm
Pixel Size 12μm
Output Frame Rate ≤ 25Hz
Thermal Sensitivity ≤ 50mK @ f/1, 300K, 30Hz
Operating Temperature Range -10°C to 50°C
Extended Detection Distance 0.5m - 1.2m
Additional Features High/low temperature alarm, Wi-Fi, Bluetooth
Display Size 3.5 inches
Display Resolution 640 × 480
Visible Light Resolution 8 megapixels
Storage Capacity 16GB
LED Lighting White LED
Battery Life 4 hours
Waterproof Rating IP54

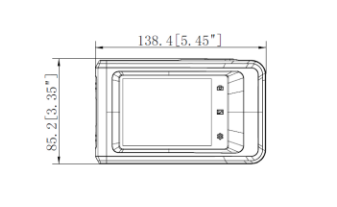

Dimensions 138.5 mm × 85.2 mm × 23.6 mm
Weight 218g
