Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image

Tempat asal:	Cina	Nama merek:	topsky

Informasi Detail
Lebur istirahat:	60-140cm	Fitur:	Tanpa kontak
Kekuatan traksi:	≥5240n	Communicaiton untuk printer:	Bluetooth
Tujuan:	Mencegah dan merespons serangan teroris	Durasi Stanard:	320 menit
Sumber Daya:	Baterai isi ulang atau catu daya eksternal	resolusi:	＞ 20 (untuk TNT)
Berat keseluruhan:	２１ｋｇ	Kecepatan:	2s
Menimbang:	15.5kg	Bahan:	Baja bermutu tinggi, Kevlar, material komposit
jarak kontrol kabel:	1000M	Pabrikan:	Berbagai kontraktor pertahanan khusus
Waktu respons:	Kurang dari 1s
Menyoroti:	Intrinsically Safe Infrared Thermal Imager , Non-contact Temperature Measurement Thermal Imaging Device , High-definition Pseudo-color Image Mine-used Thermal Imager

Deskripsi Produk

Mine-Used Intrinsically Safe Infrared Thermal Imager

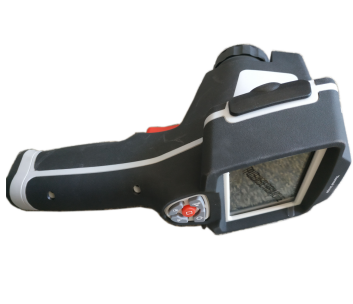

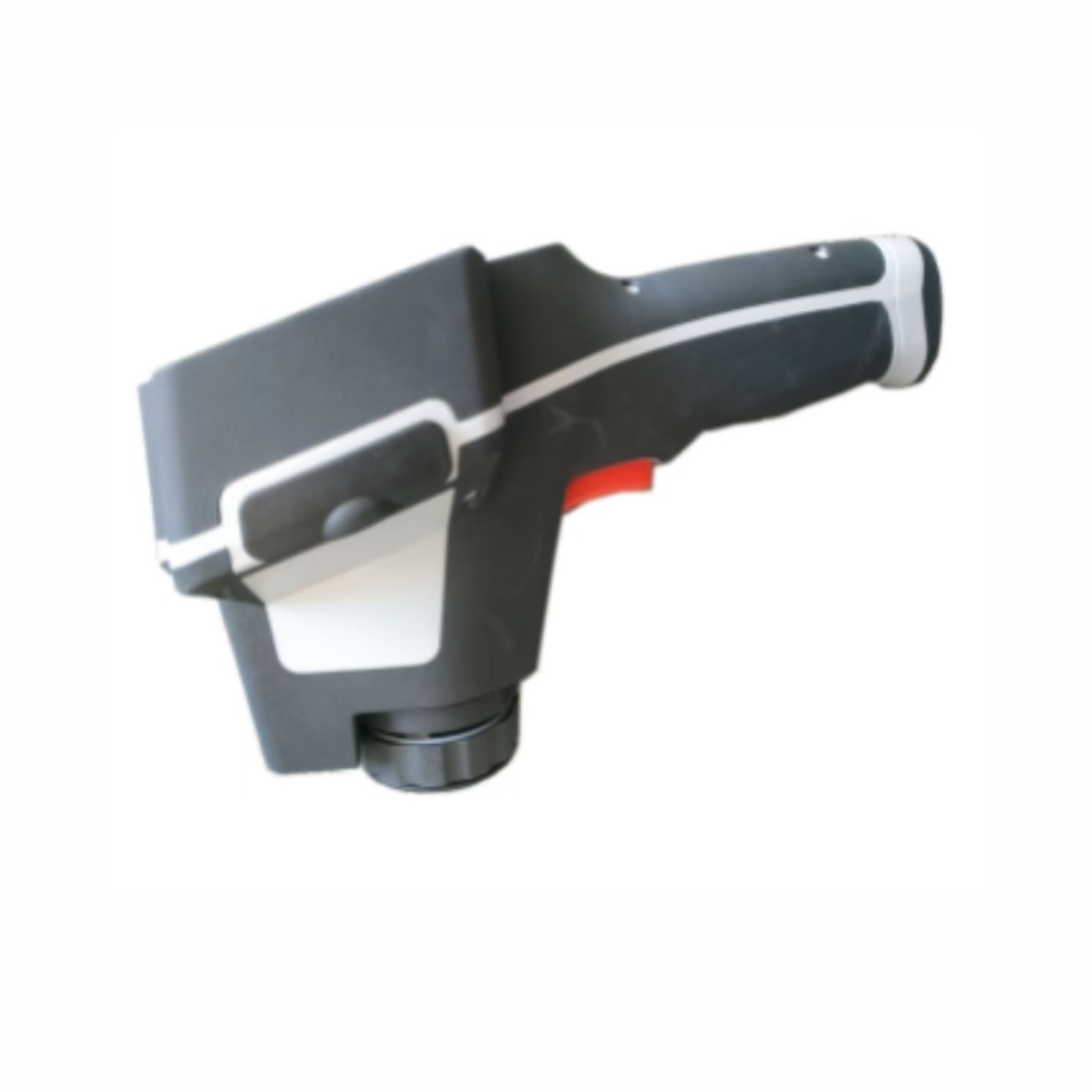

The YRH800 mine-used intrinsically safe infrared thermal imager is designed for thermal imaging and temperature measurement in coal mine environments. This advanced thermal imaging device utilizes a non-cooled focal plane infrared detector to deliver high-definition, high-sensitivity pseudo-color thermal imaging with multi-point temperature measurement capabilities.

Product Overview

This thermal imager captures and stores infrared thermal spectrum data in images, videos, and audio recordings on a Micro SD card for comprehensive computer analysis and statistical evaluation. Suitable for all personnel including technicians, operators, and management teams, it enables reliable thermal detection in explosive hazard environments.

Applications include detecting high-temperature zones, real-time temperature differential imaging, identifying coal seam spontaneous combustion areas in ventilation workspaces, and assisting rescue teams in locating trapped personnel under low-visibility conditions.

Key Features

Digital display with 0.1°C resolution and positive/negative value indication
Dual operation modes: photo capture and temperature measurement with real-time video recording
Comprehensive data management: storage, retrieval, deletion, and playback functions
Advanced temperature measurement: maximum, minimum, and average temperatures for points, lines, and surfaces
Multiple pseudo-color and color scale display options
Programmable alarm system: high-temperature, low-temperature, and preset temperature alarms
Manual and automatic focusing capabilities
Background light control with brightness adjustment
°C/°F conversion with trigger lock functionality
User-friendly operation keyboard with Chinese menu interface

Technical Specifications

Temperature Measurement Repeatability	≤ 0.5°C
Alarm System Accuracy	±1.0°C deviation from set value with audible alarm activation
Battery Module	Model PL123450, rechargeable, dual 1600mAh manganese oxide lithium batteries
Maximum Open-Circuit Voltage	8.4V DC
Maximum Short-Circuit Current	1.6A
Explosion-Proof Certification	Mine intrinsically safe type, Ex ibⅠMb
Housing Material	ABS + silicone construction
Weight	1.0kg
Dimensions	283 × 103 × 160mm
