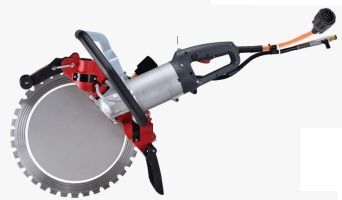

Water-cooled permanent magnet synchronous motor High-frequency Ring Saw with transmission tension adjustment knob

Kuantitas min Order : 1set Harga : USD6800
Kemasan rincian : Kotak aluminium Waktu pengiriman : 60 hari
Syarat-syarat pembayaran : T/T Menyediakan kemampuan : 10 set/bulan
Tempat asal: Cina Nama merek: Topsky
Nomor model: LT-R16

Informasi Detail

Kekuatan: 6.5KW Diameter Mata Gergaji: 400mm
Kedalaman Pemotongan Maksimum: 300MM Kecepatan memotong: 229cm²/mnt
Kecepatan tanpa beban maksimum: 2500r / mnt Tingkat Kebisingan: 93dB
Berat badan: 13kg

Deskripsi Produk

Product Overview
405mm (16") wet ring saw equipped with a 6600W high-frequency permanent magnet synchronous motor, providing a maximum cutting depth of 300mm!



Application Scope
Suitable for fire rescue, emergency rescue and other fields.



Product Features



  1. One-step drive tension adjustment knob for simple and quick adjustment to maintain balanced tension.
  2. Load warning LED light.
  3. 6600W water-cooled permanent magnet synchronous motor with excellent power and efficiency, capable of continuous fixed output under any load.
  4. Highly stable idler wheel design keeps the saw blade stable and concentrates force at the start of cutting.
  5. 300mm cutting depth.



Main Technical Specifications



  1. Power: ≥6.5kW (380V), ≥3.5kW (220V)
  2. Saw blade diameter: ≥400mm
  3. Maximum cutting depth: ≥300mm
  4. Cutting speed: ≥229cm²/min
  5. Maximum no-load speed: ≥2500r/min
  6. Noise level: ≤93dB
  7. Weight: ≤13kg
  8. Equipped with drive tensioner and drive tension adjustment knob for simple and quick adjustment to maintain balanced tension; saw blade can be replaced quickly without removing the fixed cover.
  9. With Hall effect protective switch and LED overload/load indicator function: when approaching overload, the circular saw's indicator light warns to prevent equipment shutdown due to overload, improving usage efficiency.



Product Configuration



  1. 1 high-frequency ring saw
  2. 1 ring saw blade
  3. 1 instruction manual
  4. 1 certificate of conformity




Company Information

Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.

Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.

Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.

So far, many products have been exported to more than 10 countries.
