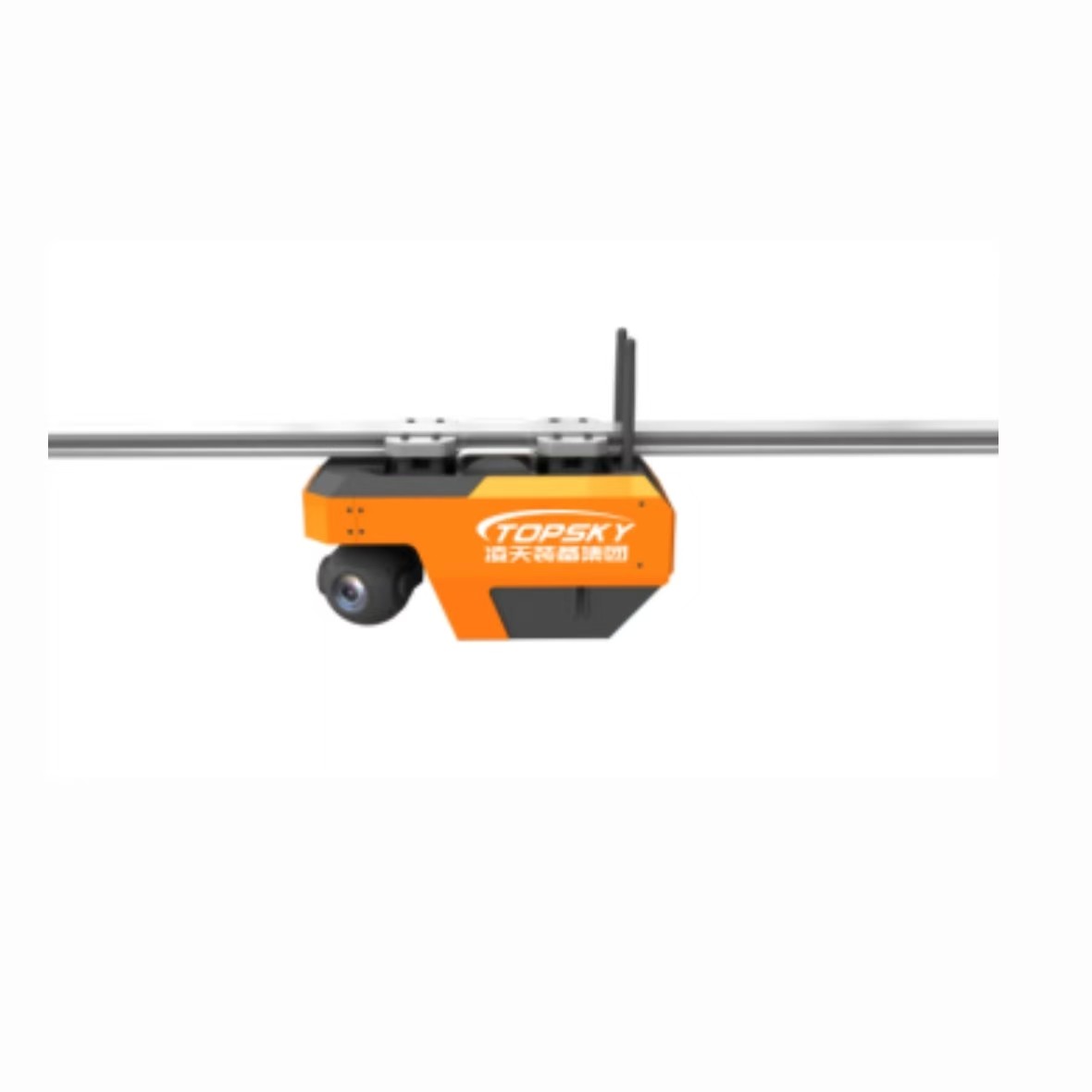

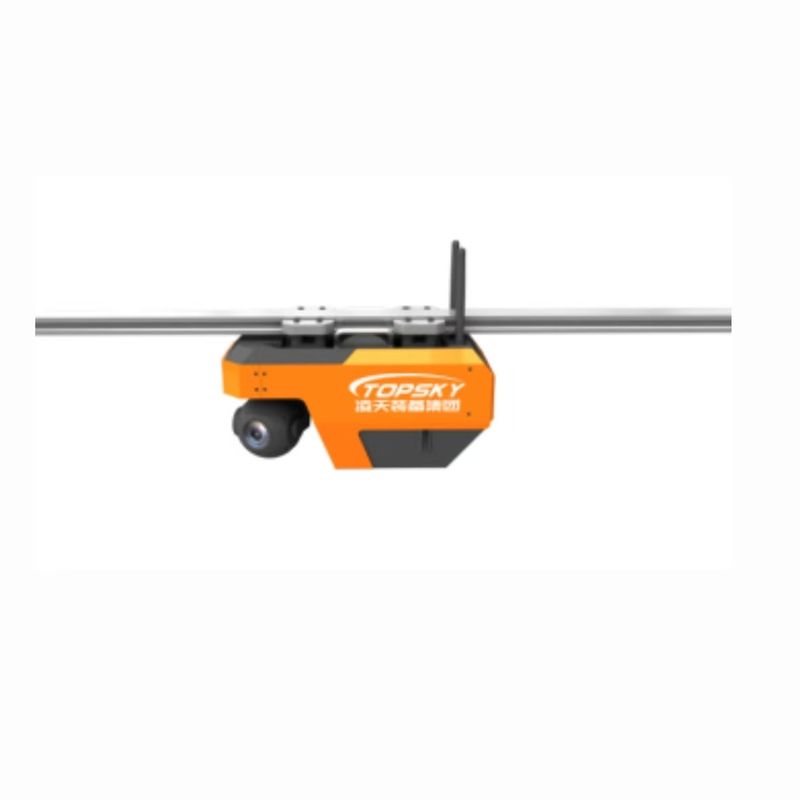

portable track inspection robot
portable track inspection robot portable track inspection robot portable track inspection robot portable track inspection robot
Hubungi sekarang

robot inspeksi jalur portabel

Minimum Order Quantity : 2 Harga : USD88000/PCS
Delivery Time : 5-8 WEEK DAYS Payment Terms : T/T
Place of Origin: CHINA Nama merek: TOPSKY

Deskripsi Produk

robot inspeksi jalur portabel

Gambaran umum:
Robot inspeksi dipasang di trek gantung dan mengadopsi beberapa mode operasi untuk beradaptasi dengan lingkungan yang kompleks untuk inspeksi.Periksa peralatan operasi di sepanjang jalur untuk memastikan operasi yang stabil. Dilengkapi dengan peralatan video pickup definisi tinggi, mencapai dynamic cruising, on-site video pickup, intelligent recognition of instrument data, and eliminate manual meter reading.Multiple toxic and harmful gas detection to ensure safe operating environment Mengidentifikasi gas beracun dan berbahaya untuk memastikan lingkungan operasi yang amanAutonomous wireless charging, intelligent detection of battery level and automatic charging.Ensuring operation throughout the day (Memastikan operasi sepanjang hari). It has obstacle avoidance function to prevent machine collision accidents. Equipped with thermal imaging function, it can accurately detect the operating temperature of equipment and prevent fires. It has obstacle avoidance function to prevent machine collision accidents. Equipped with thermal imaging function, it can accurately detect the operating temperature of equipment and prevent fires.Manajemen informasi backend, real-time summary of various detection data, and clearer problem feedback.


Fitur:

1. Suitable for coal mine water pump rooms, winch rooms, and other key underground inspection areas.
2. Suitable for regular inspection and testing of long-distance underground tunnels. Cocok untuk pemeriksaan dan pengujian terowongan jarak jauh.
3. Suitable for belt conveyor inspection during the washing process.
4.It is suitable for intelligent monitoring of situations such as offset of the wellbore, wear of the tank ears, abnormal tension of the steel wire rope, and mechanical abnormal noise.
5. Suitable for return airway inspection robots and substation inspection robots, achieving all-round intelligent inspection.

Spesifikasi:
Parameter seluruh mesin
1Fungsi dasar: Inspeksi audio dan video, pengenalan instrumen, deteksi gas beracun dan berbahaya, pengenalan suhu, alarm informasi abnormal
2. Tingkat perlindungan: Robot body protection level IP64
3Daya: Baterai lithium ternary listrik
4. Size: ≤ 240mm in length, 100mm in width, and 130mm in height
5. Radius putar: ≤ 210mm
6. Akurasi posisi: ± 20mm
7. Berat: ≤ 2,6 kg
8. Kecepatan maksimum dalam garis lurus: ≥ 0,8 m/s, remote controlled continuously variable transmission
9Kemampuan memanjat: 25 °
10. Tipe power supply: lithium battery yang bisa dilepas
11Jarak: 2 km
12. Autonomous obstacle avoidance function: Forward infrared radar, capable of automatic parking processing (Pengendalian rintangan otonom)
13. Kontrol mode: Autonomous kontrol
14Robot Inspection System: By configuring gas meters, environmental monitoring modules, infrared cameras, infrared thermal imagers, pickups and other onboard equipment,it can inspect toxic and harmful gases at the work site (bisa memeriksa gas beracun dan berbahaya di tempat kerja), kondisi lingkungan, video dan audio dari situs inspeksi;
Sistem perangkat lunak: Pengakuan instrumen, alarm abnormal untuk lingkungan kerja (suhu dan kelembaban, gas beracun),
Konfigurasi sistem inspeksi: 1 gimbal, 1 detektor suhu dan kelembaban
15Mengkonfigurasi beberapa gas deteksi modul, dengan parameter teknis sebagai berikut:
